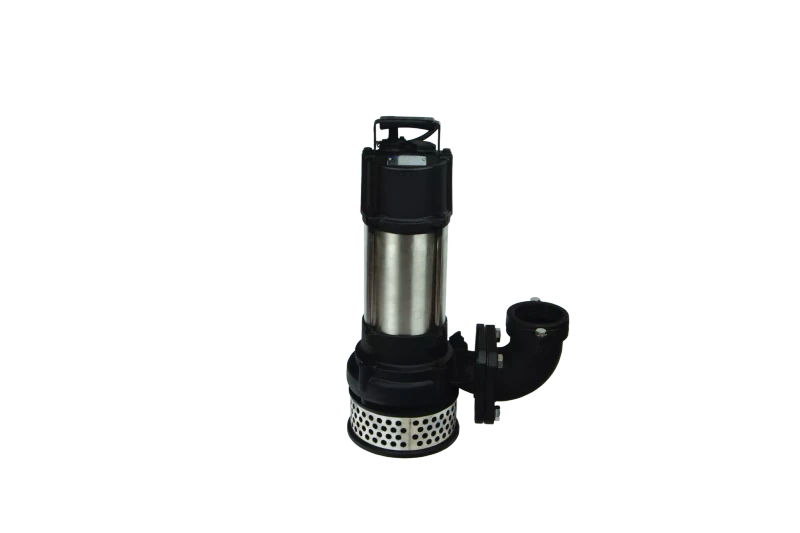

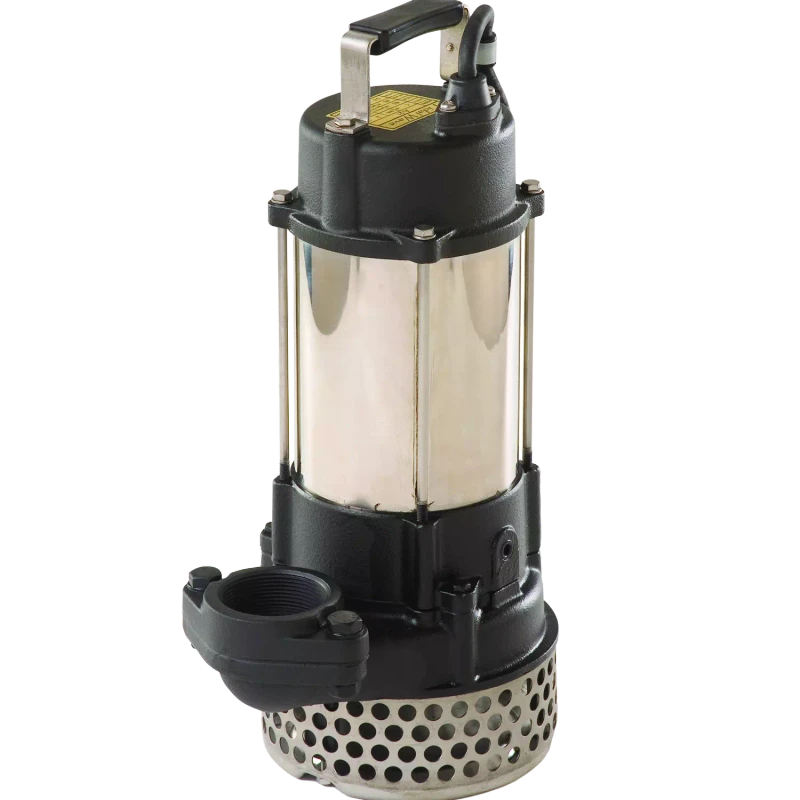

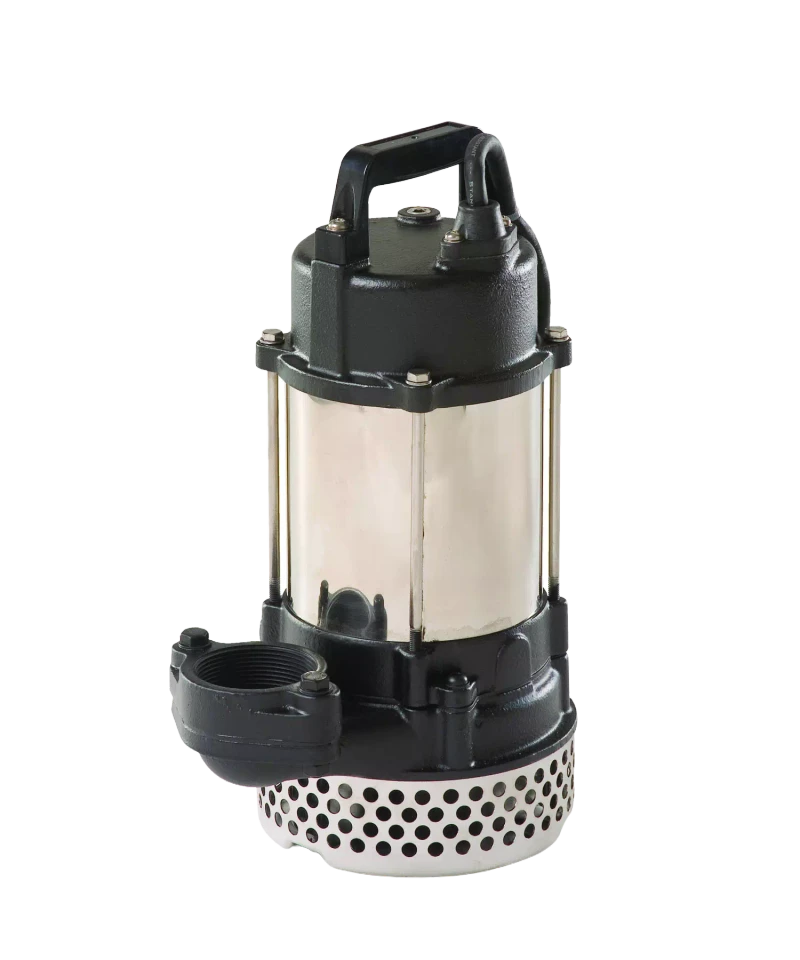

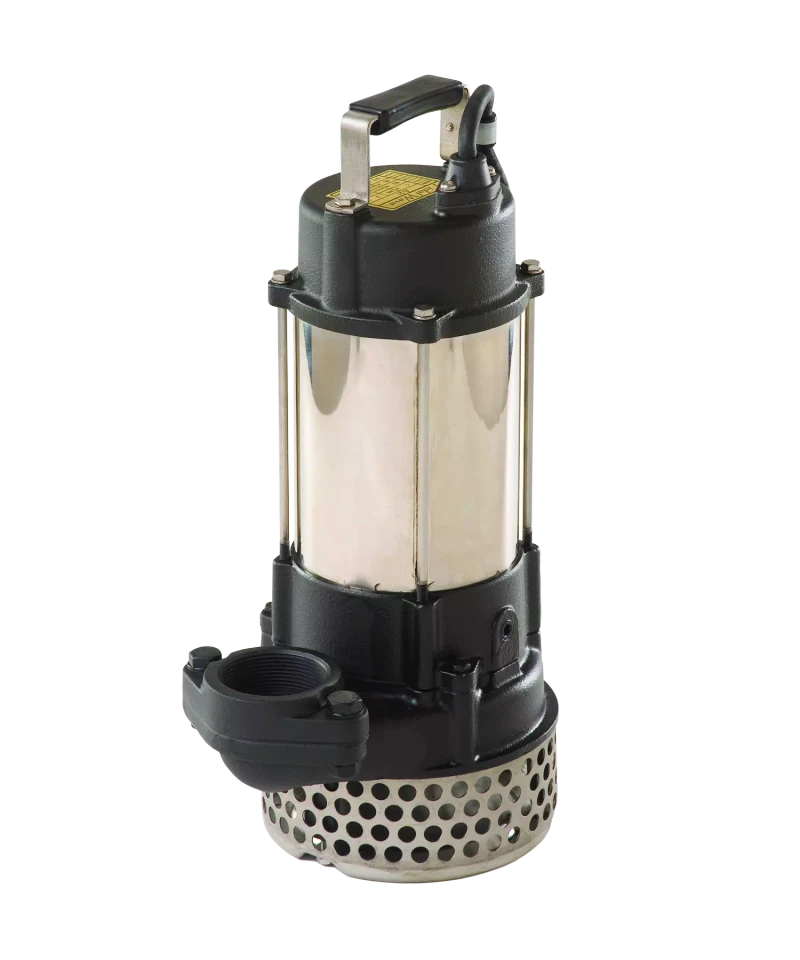

Atlantic A-Series Direct-Drive High-Head Pumps

Built with rugged cast iron and stainless steel housing, the A-Series features double silicone carbide mechanical seals, dual drive bearings, and thermal overload protection for maximum reliability and motor longevity. Backed by a 2-year warranty.

Key Features

• High-Head Power: Direct-drive engineering built to tackle demanding high-volume, tall-waterfall applications.

• Heavy-Duty Build: Cast iron and stainless steel construction with double silicone carbide mechanical seals.

• Built-in Protection: Thermal overload protection prevents overheating during low-water conditions.

• Extended Reach: Includes a convenient 30-foot power cord on all models.

Available Models & Specifications

• A-05 (1/2 HP): 32 lbs | 115V, 5.4A, 645W | 2" FIPT outlet

• A-05L (1/2 HP High-Flow): 40 lbs | 115V, 6.4A, 725W | 2" FIPT outlet

• A-21 (1 HP): 43 lbs | 115V, 10A, 1,060W | 2" FIPT outlet

• A-31 (1 HP High-Volume): 48 lbs | 115V, 10A, 1,160W | 3" FIPT outlet

• AN-32 (2 HP Heavy-Duty): 92 lbs | 230V, 9.8A, 2,155W | 3" FIPT outlet
