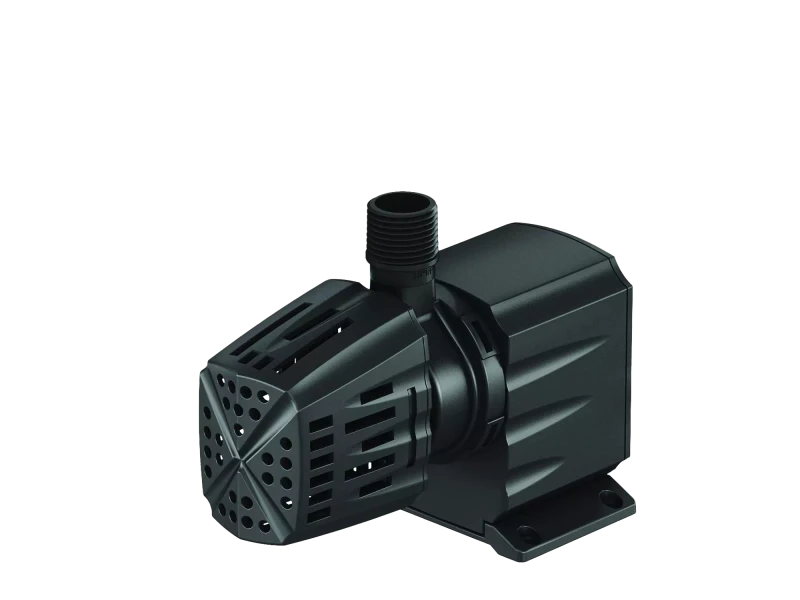

Atlantic MD-Series Magnetic Induction Pumps

The Atlantic MD-Series features a versatile 4-way orientable volute, quarter-turn toolless access to the replaceable impeller assembly, and an oversized ceramic shaft for extended service life. Less restrictive male threaded inlets and outlets maximize water delivery, backed by an industry-leading 5-year warranty.

Key Features

• High-Head Performance: Advanced magnetic induction design delivers better flow rates at higher head heights.

• Flexible Placement: 4-way orientable volute and removable stable base fit tight installations.

• Easy Maintenance: Quarter-turn access allows quick cleaning of the replaceable impeller assembly.

• Extended Durability: Oversized ceramic shaft and removable pre-filter minimize internal wear.

• Industry-Leading Protection: Backed by a 5-year warranty.

Available Models & Specifications

• 250 GPH MD-Series: Max flow 300 GPH | 1” MIPT inlet / 0.75” MIPT outlet | Dimensions: 4.5”L × 3.5”W × 5”H

• 550 GPH MD-Series: Max flow 650 GPH | 1” MIPT inlet / 0.75” MIPT outlet | Dimensions: 4.5”L × 3.5”W × 5”H

• 750 GPH MD-Series: Max flow 790 GPH | 1” MIPT inlet / 0.75” MIPT outlet | Dimensions: 4.75”L × 3.5”W × 5”H

• 1000 GPH MD-Series: Max flow 1,080 GPH | 1.5” MIPT inlet / 1” MIPT outlet (Includes 1.5” adapters for Triton Check Valves/Fountain Kits) | Dimensions: 5.5”L × 4.75”W × 5.5”H

• 1250 GPH MD-Series: Max flow 1,330 GPH | 1.5” MIPT inlet / 1” MIPT outlet (Includes 1.5” adapters) | Dimensions: 5.5”L × 4.25”W × 5.5”H

• 1500 GPH MD-Series: Max flow 1,560 GPH | 1.5” MIPT inlet / 1” MIPT outlet (Includes 1.5” adapters) | Dimensions: 6”L × 4.75”W × 6”H
