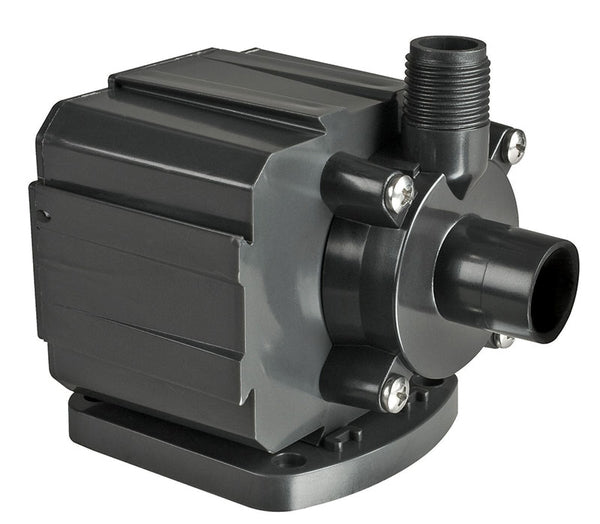

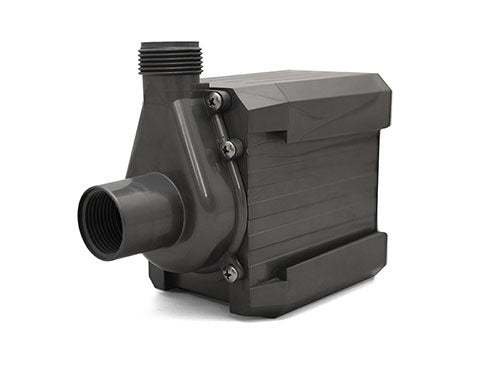

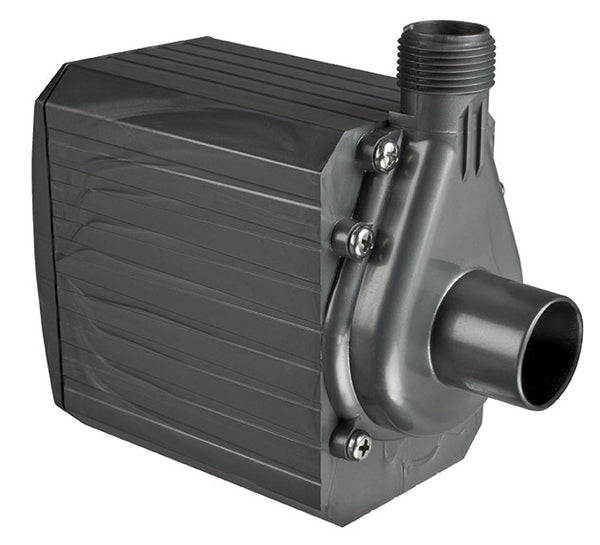

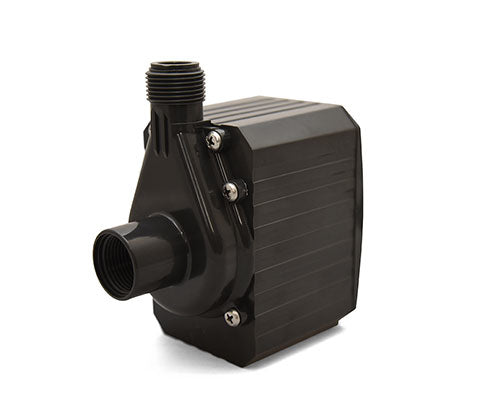

Pondmaster Pond-Mag® Series Pumps
Pondmaster Pond-Mag® pumps utilize an epoxy-encased power unit and a robust magnetic impeller assembly with a durable ceramic shaft, ensuring water remains entirely free of harmful oils or chemicals. Designed to operate either fully submerged or inline, every model in the series is backed by a 5-year limited warranty and includes a rigid pre-filter.
Key Features
-
Oil-Free Operation: Epoxy-encased motor prevents any risk of water contamination from toxic oils or lubricants.
-
Versatile Installation: Fully certified for safe use operating either submerged or in an external inline configuration.
-

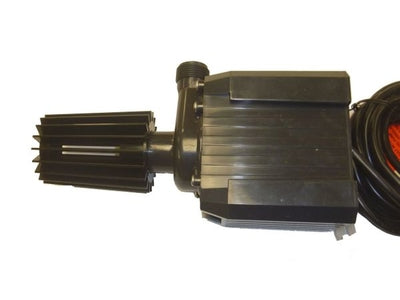

Low Maintenance: Includes a rigid pre-filter to catch coarse debris and protect the ceramic-shaft impeller.
-
Peace of Mind: Backed by a 5-year limited warranty (UL/CUL certified).
Available Models & Specifications
| Model & Item # | Max Flow / Shut-Off | Power (Watts/Amps) | Inlet / Outlet | Cord Length | Dimensions (L × W × H) |
| Pond-Mag 250 (02522) |
280 GPH (6' 5" max head) |
24W / 0.4A | 1/2" FPT / 1/2" MPT | 18 ft | 5.0" × 3.8" × 4.2" |
| Pond-Mag 500 (02525) |
525 GPH (10' 6" max head) |
45W / 0.9A | 1/2" FPT / 1/2" MPT | 18 ft | 5.0" × 3.8" × 4.2" |
| Pond-Mag 700 (02527) |
700 GPH (11' 8" max head) |
70W / 1.6A | 1/2" FPT / 1/2" MPT | 18 ft | 5.0" × 3.8" × 4.2" |
| Pond-Mag 950 (02710 / 02720) |
1,010 GPH (13' 7" max head) |
93W / 1.33A | 3/4" FPT / 3/4" MPT | 10 ft or 18 ft | 5.0" × 3.0" × 5.25" |
| Pond-Mag 1200 (02722) |
1,190 GPH (13' 7" max head) |
110W / 1.5A | 3/4" FPT / 3/4" MPT | 18 ft | 6.4" × 3.0" × 5.25" |
| Pond-Mag 1800 (02728) |
1,300 GPH (16' 6" max head) |
145W / 1.55A | 3/4" FPT / 3/4" MPT | 18 ft | 6.4" × 3.0" × 5.25" |
| Pond-Mag 2400 (02750) |
2,400 GPH (20' 0" max head) |
237W / 2.2A | 1" FPT / 1" MPT | 18 ft | 7.25" × 4.0" × 6.0" |
| Pond-Mag 3600 (02755) |
3,600 GPH (24' 0" max head) |
256W / 3.0A | 1" FPT / 1" MPT | 18 ft | 7.25" × 4.0" × 6.0" |
